Name: Gravity: Dual Bipolar Stepper Motor Shield for Arduino (DRV8825)
Brand: DFRobot
SKU: DRI0023
Price: 329.00 USD
Availability: InStock

Gravity: Dual Bipolar Stepper Motor Shield for Arduino (DRV8825)

$329.00

SKU: DRI0023 Category: Modules Tag: Arduino

Introduction

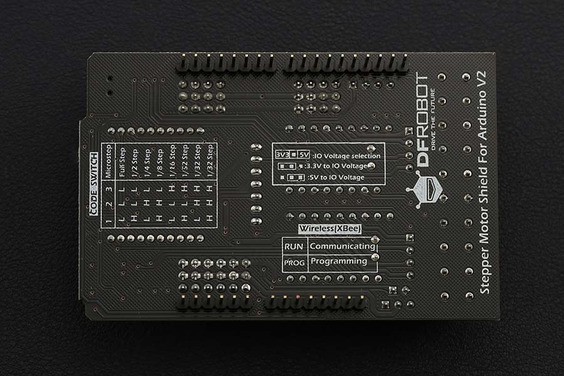

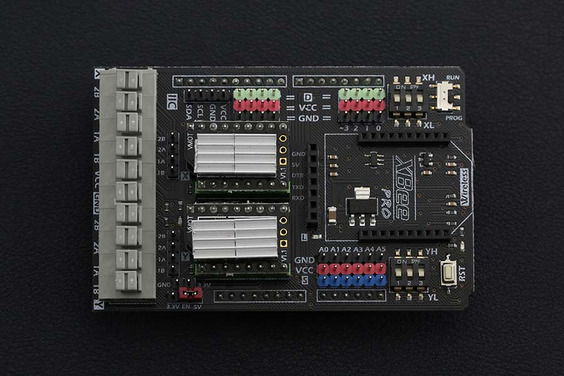

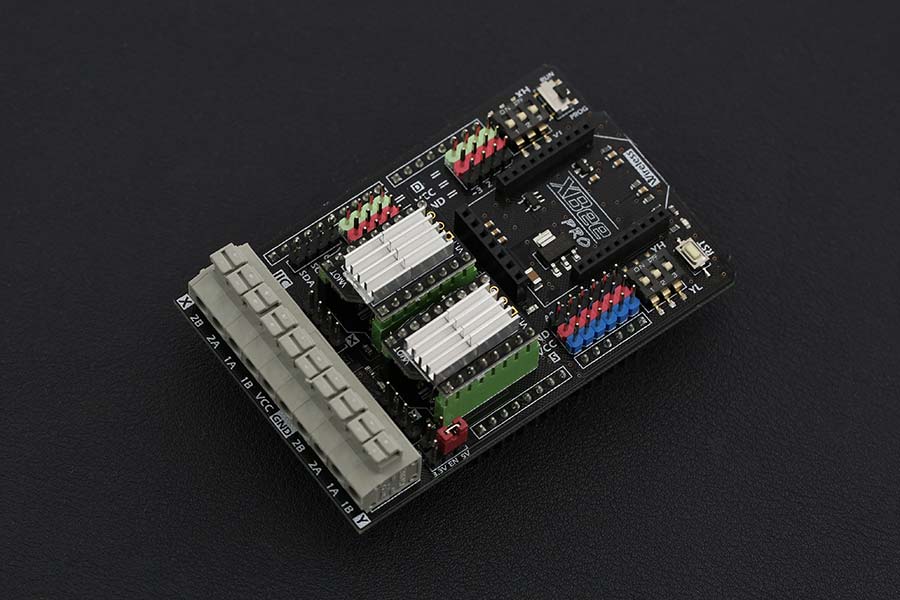

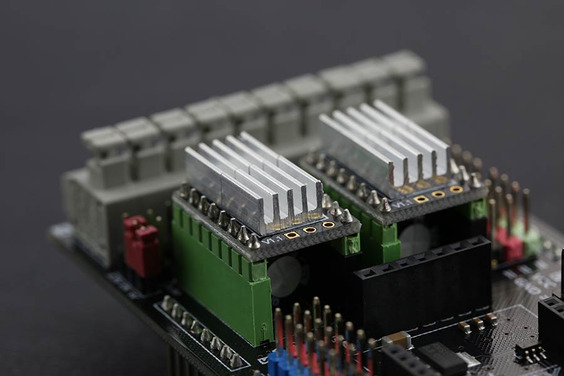

Do you want to do some projects with stepper motors such as a drafting instrument, a 3D printer, an auto curtain……? As we all know, regular stepper motors are hard to drive, but with this stepper motor shield, you can easily drive 2 stepper motors via just 6 digital I/O pins. This board is compatible with the Arduino UNO R3. This shield directly supports Xbee and Xbee form factor Wi-Fi, Bluetooth and RF modules and is easy to connect cables via screwless PC terminals. Each stepper motor has a code switch for adjusting driving modes to obtain different rotational speeds. Interfaces of the board include extension 6 channel Analog I/O, 8 channel Digital I/O & I2C.

Version Upgrade:
1.V2 replaces DRV8825 as stepper motor driver, higher micro stepping (1/32)
2.Increase 3.3/5V input signal switch, compatible with 3.3V microcontroller
3.Expand the driver Enable pins, support sleep mode

JavaScript display

**Motor Drive Expansion Board Selection Guide**

Product Name	2x1A DC Motor Shield for Arduino	Micro:bit Driver Expansion Board	Gravity: Dual Bipolar Stepper Motor Shield for Arduino (DRV8825)	Quad DC Motor Driver Shield for Arduino
SKU	DRI0001	DFR0548	DRI0023	DRI0039
Chip	L293B	HR8833	DRV8825	TB6612FNG
Operating voltage	5V DC	/	3.3V/5V	2.7~5.5V
Motor drive voltage	7-12V DC	3.5~5.5V DC	8.2-45VDC	2.5V-13.5V
Maximum drive current	1A each way	1.5A	1.6A	1.2A continuous current (per channel) 2A (continuous pulse) 3.2A (single pulse)
Motor drive using pins	PIN4/5/6/7 (Arduino Controllor)	/	D4，D5，D6 D7，D8，D12	D3,4,5,6,7,8,11,12
Dimension	56x57mm	63 x 58mm	835525mm	52mm * 53mm
Weight (g)	60	64	48	24
Frequently used With	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series	FIT0278/FIT0503	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series
Key Features	With motor indicator	8-way servo interface DC motor x4/stepper motor x2(multiplexed with motor interface)	Full step, 1/2, 1/4, 1/8, 1/16, 1/32 step mode	High-speed drive capability, can drive ordinary 2-phase stepper motor to 5000RPM, and drive quad DC at the same time

Product Name	Gravity: IO Expansion & Motor Driver Shield	Gravity: 2x2A Motor Shield for Arduino Twin	TMC260 Stepper Motor Driver Shield	2x2A DC Motor Shield for Arduino
SKU	DFR0502	DRI0017	DRI0035	DRI0009
Chip	TB6612FNG	L298	TMC260	L298P
Operating voltage	2.7~5.5V	5V	5V	5V
Motor drive voltage	12V (peak value)	4.8 ～ 35V	40V max	6.5~12v(VIN Power Supply),4.8~35V (External Power Source)
Maximum drive current	1.2A continuous current (per channel) 2A (continuous pulse) 3.2A (single pulse)	up to 2A/channel	up to 2A per motor coil	2A
Motor drive using pins	D4 D5 D6 D7	D10,11,12,13	/	Pin 4,5,6,7 are used to drive two DC motor
Dimension	68.5mm×53.3mm	56x57mm		55x55mm
Weight (g)	36	35	35	60
Frequently used With	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series	FIT0278/FIT0503	FIT0565/FIT0520/ FIT0450/FIT0492/ N20 Series
Key Features	Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee, I2C.	Mirrored version of DRI0009. Drive pins: 10, 11, 12, 13 Not compatible with IO expansion board V7.1. The control port is four, which reduces the overhead of the Arduino digital ports, and easy to program.	Suitable for driving bipolar stepper motors. SPI serial bus control or STEP/DIR signal control. Controllers such as Mega with full port expansion. 256 times microstep subdivision.	Use mirror motor to drive DRI0017 to aviod the conflicts . Support PWM speed control. Support PLL advance speed control

Specification

Input Voltage: 8.2-45 VDC
Output current: 1.6 A (Limited)
Working voltage: 3.3/5 V
Driving pin: D4, D5, D6, D7, D8, D12
Microstep resolutions: full, 1/2, 1/4, 1, 8, 1/16, 1/32
Support Dual Bipolar Stepper Motor
Support XBee interface
Compatible with the Arduino UNO R3, Leonardo, Mega microcontroller
Dimension: 83 * 55 * 25 mm/3.26 * 2.16 * 0.98 inches
Weight: 48 g

Documents

Shipping List

SDual Bipolar Stepper Motor Shield for Arduino (DRV8825) x1
